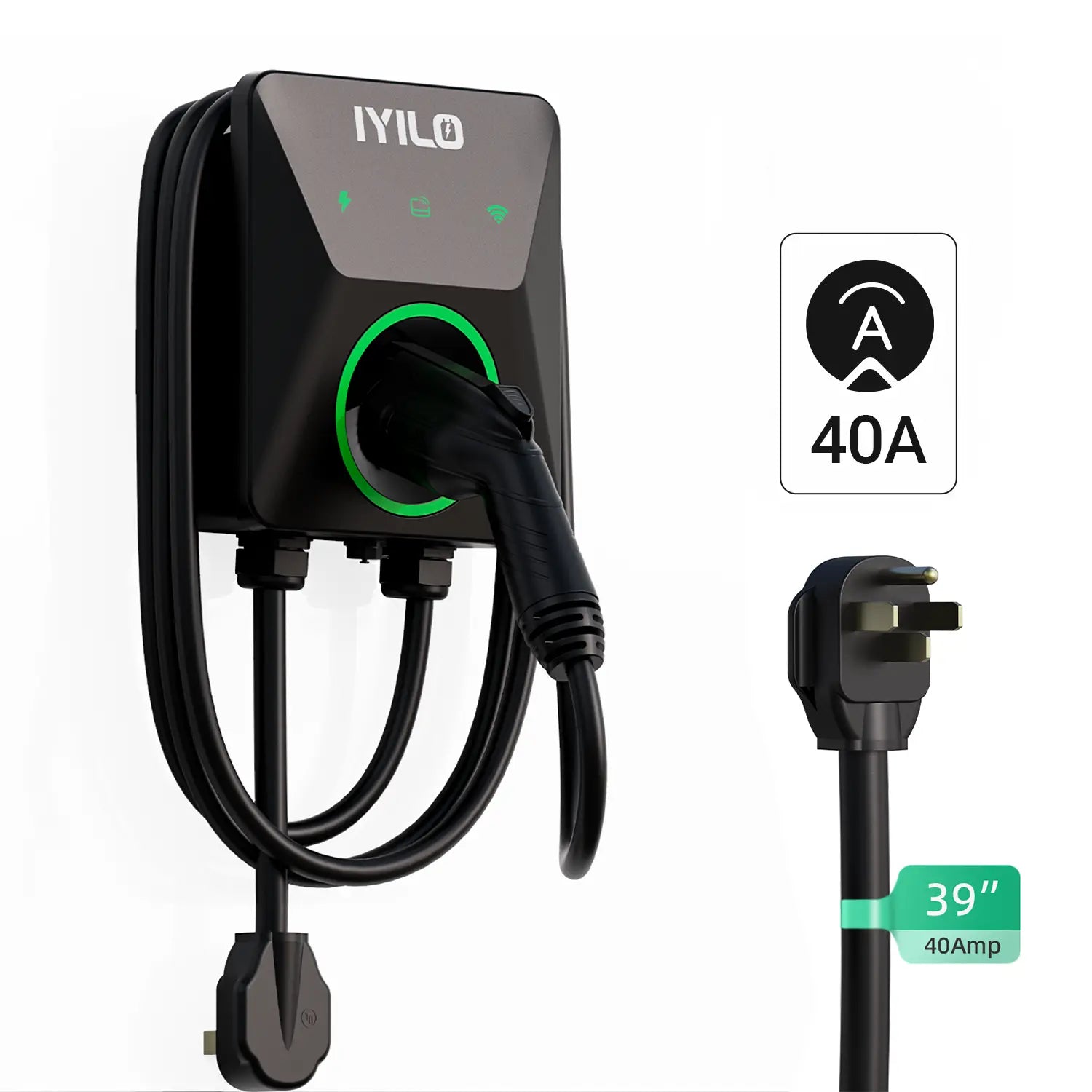

IYILO Level 2 EV Charger Plug In - 40A

NEMA14-50 J1772 Wall-mounted EV Charger Wifi Enabled

$399.00 USD
$399.00 USD
Shipping calculated at checkout.
Warranty: 3-Year
Connectivity: Wifi-Enabled
  • In stock
  • Inventory on the way

Exceptional Value – Fast, Smart Charging with the IYILO Level 2 EV Charger

Key Features of the IYILO Plug-In 40A

  • Max Current: 40A Plug-In
  • Next-gen NTC sensors in the NEMA 14-50 plug and connector provide real-time temperature monitoring through the appp.

Additional Features of IYILO Level 2 EV Charger

  • Plug and charge
  • RFID Card
  • Scheduled charging
  • Data export
  • Multi-family account
  • Time of Use (TOU) rate statistics
Main features

1.Automatic Plug Overheat Protection:
Worried about your plug burning out? IYILO's NEMA 14-50 plug is equipped with an advanced NTC temperature sensor that continuously monitors plug temperature in real time and displays it directly in the app. When overheating is detected, the charger automatically reduces current—or even shuts down—to prevent damage to your plug and outlet.

2.Up to 7X faster charging speed:
The IYILO Level 2 EV Charger delivers up to 38 miles of range per hour at 40A (9.6kW) using the NEMA 14-50 plug, just plug into a compatible 240V outlet. Current is adjustable from 6A to 40A in 1A increments. Supports Plug & Charge for instant charging as soon as it’s connected. Up to 7 times faster than a standard Level 1 charger.

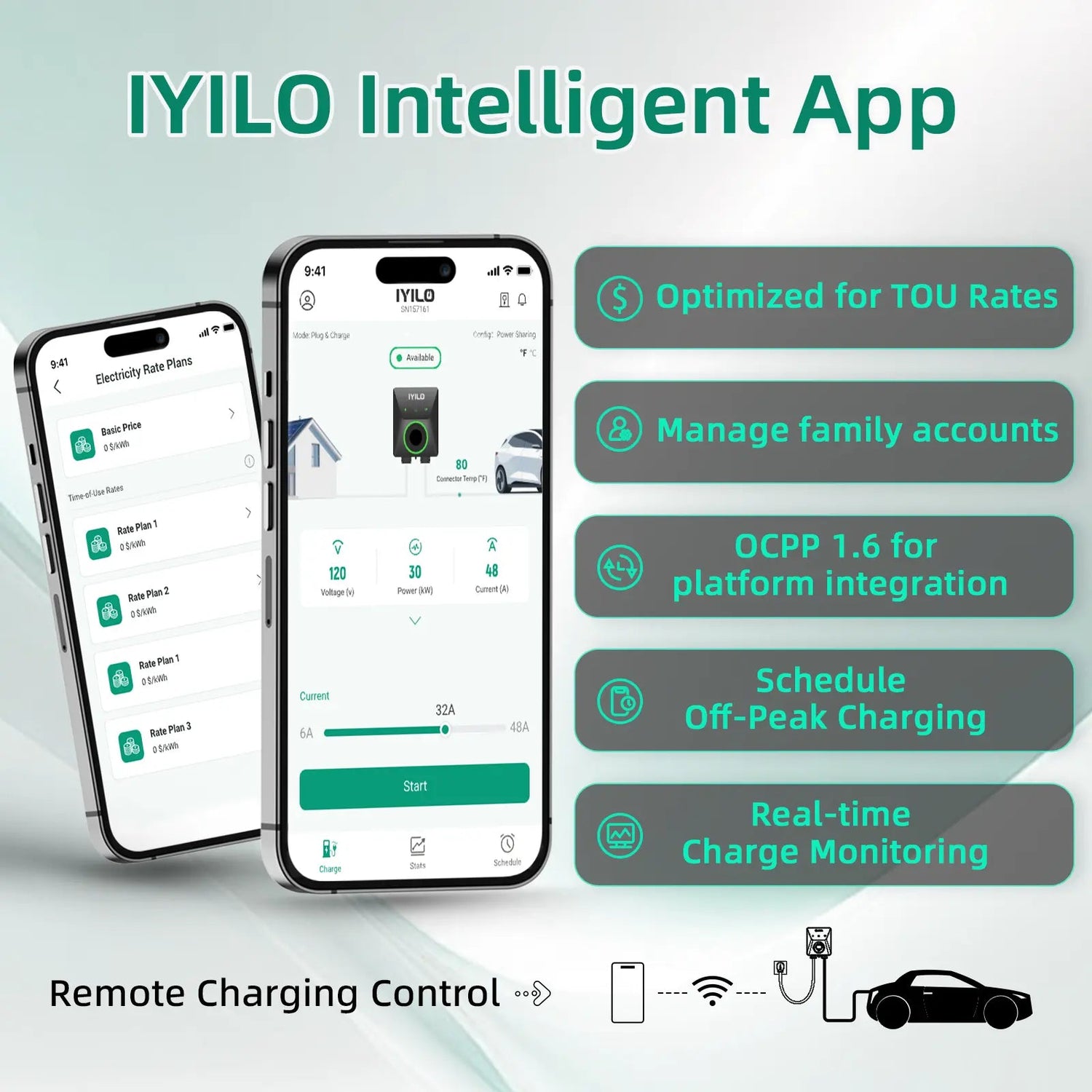

3.Intelligent App & Smart Charging Control:
The IYILO App features a smart, intuitive interface to set Time-of-Use (TOU) rates, track energy usage and cost, and manage multiple user accounts. It supports multiple charging modes, including scheduled charging, RFID card, and plug-and-charge, while also offering OTA remote diagnostics and upgrades to ensure optimal performance and a longer lifespan.

4.US Certification and Safety Features:
The IYILO Level 2 charger is UL compliant and passed UL991, UL1998, UL2231, and UL2594 tests. ETL and Energy Star certified. It features a built-in CCID 20 Leakage protection, ultra-flex cable,and NEMA 4 waterproof rating. Includes over-current, over-voltage, short-circuit protection, and total 9 safety features.

5.Compatible With All EVSE:
The IYILO EV Charger level 2 is compatible with Ford Mustang Mach-E, Honda Prologue, Chevy Bolt, Hyundai IONIQ 5/6, Rivian R1T/R1S, Jeep 4XE, VW ID4, Kia EV6/EV9 (Tesla requires a SAE J1772 adapter), and other J1772 EV and PHEV models in North America.

6.Installation and Reliable:

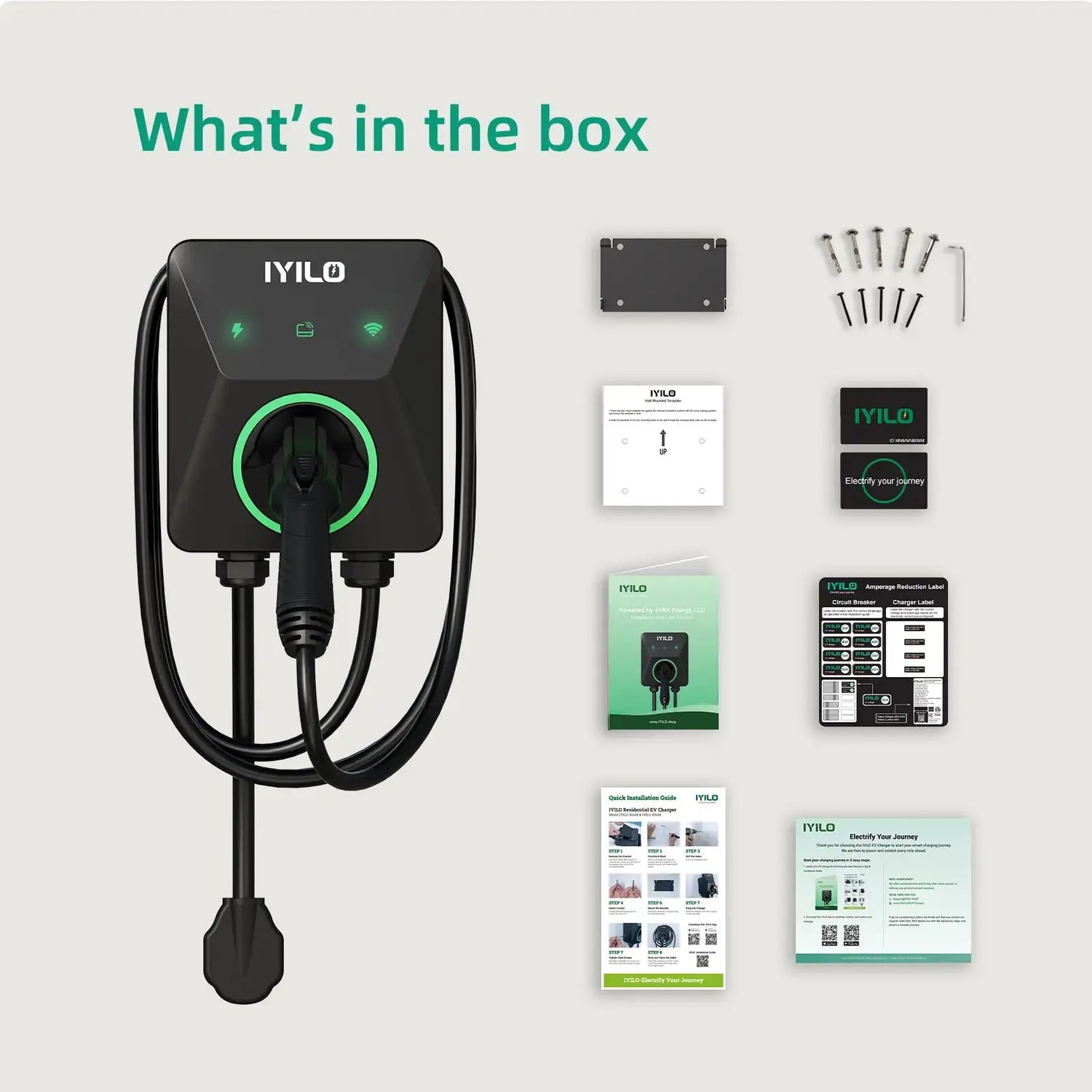

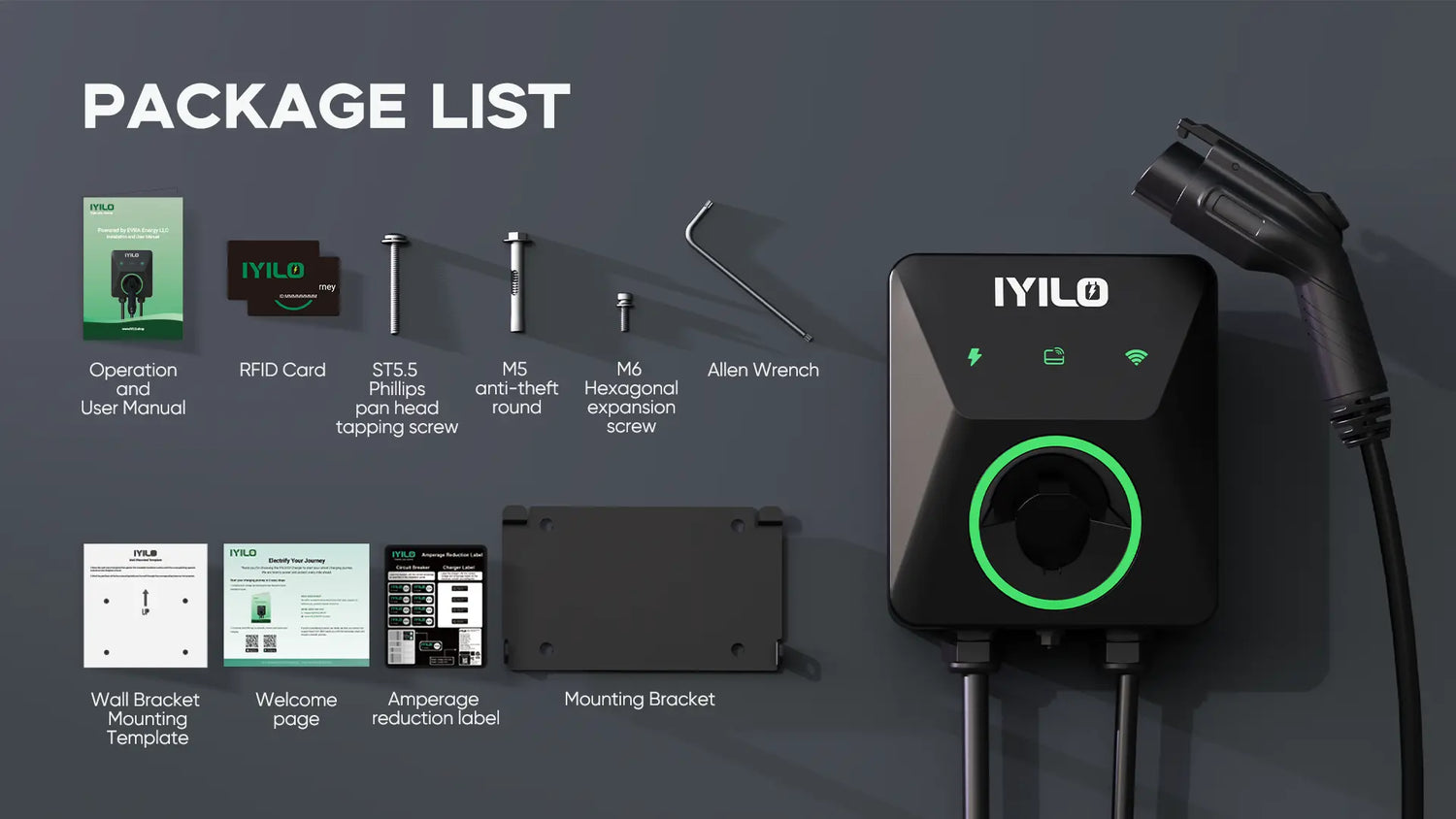

IYILO Electric Vehicle Charging Station is designed for easy setup and installation. A complete installation guide is included in the package, and step-by-step videos or PDF manuals are available via the IYILO App. IYILO proudly serves American customers with trusted support and fast service. We offer a 3-year warranty and dedicated customer service, available Monday to Friday, 9 AM–6 PM PST .

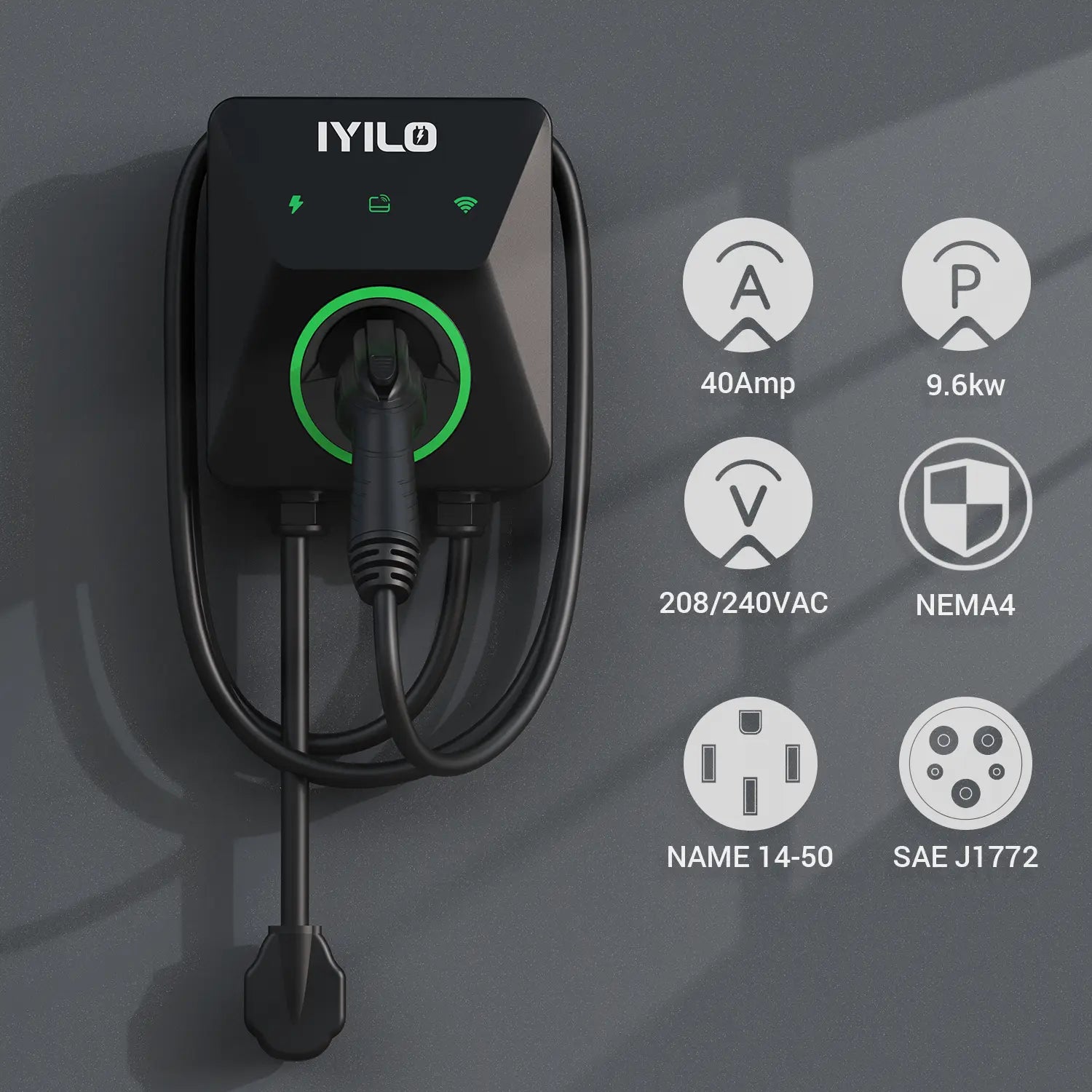

Technical specs

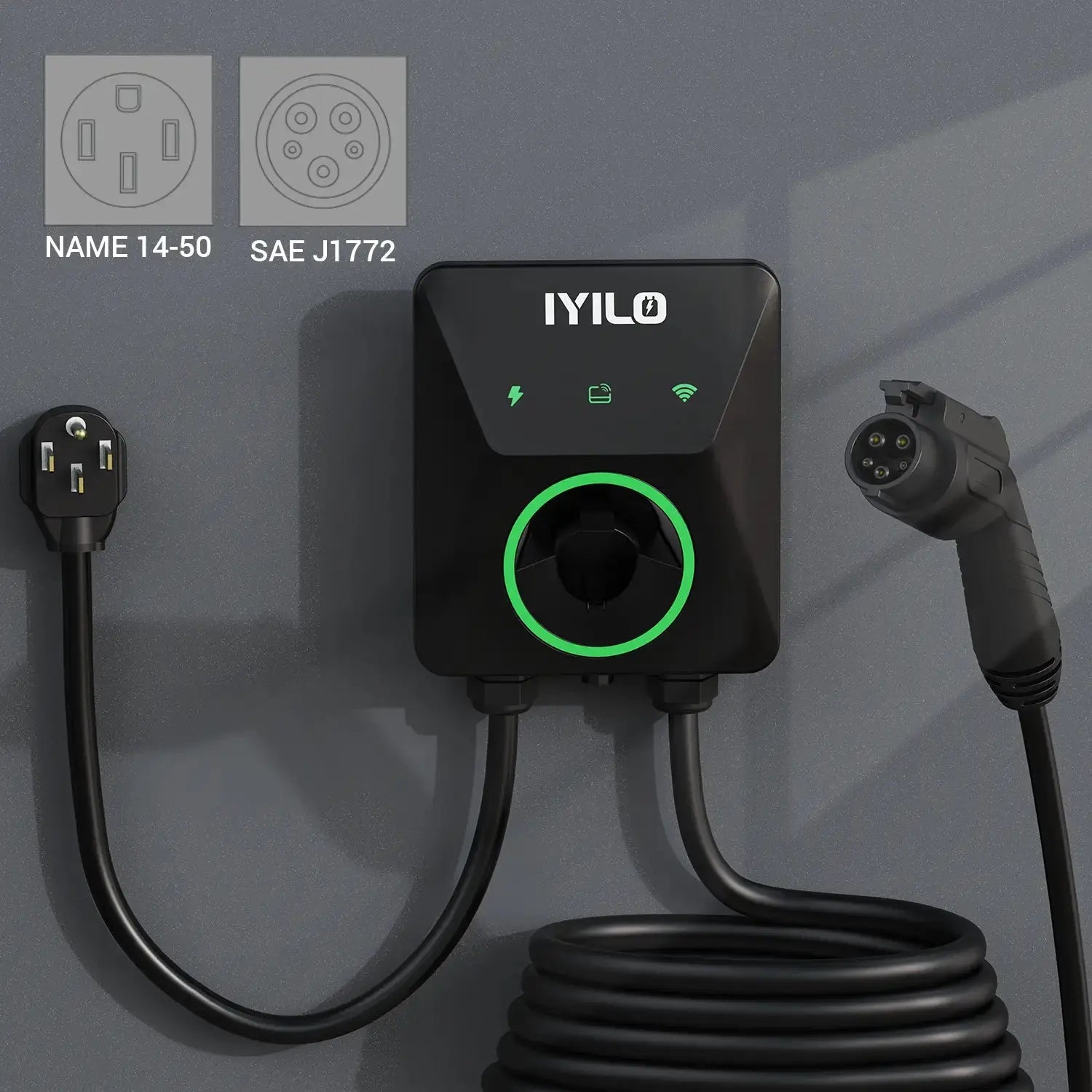

Compatibility Non-Tesla (J1772)
Connector SAE J1772
Plug Type NEMA 14-50(NTC Sensor Included)
Wi-Fi 2.4G WI-FI
APP Access IYILO APP
Charging Level Level 2
Max Amperage 40 A
Max Voltage 208/240 V AC
Max Power 9.6 kW

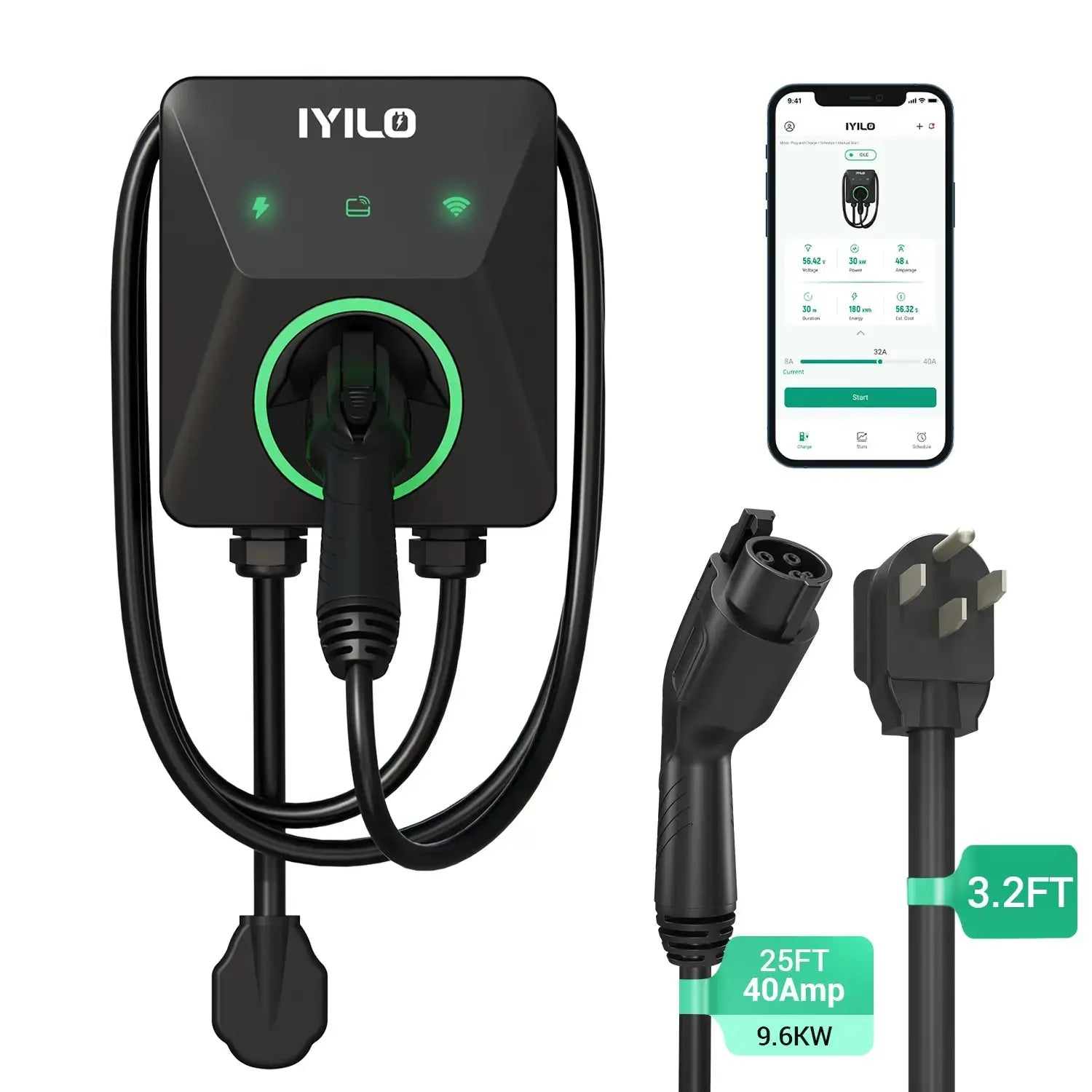

Cable Length 25FT
OPERATING TEMPERATURE RANGE -22°F to 122°F (-30°C to 50°C),
Enclosure Rating NEMA 4

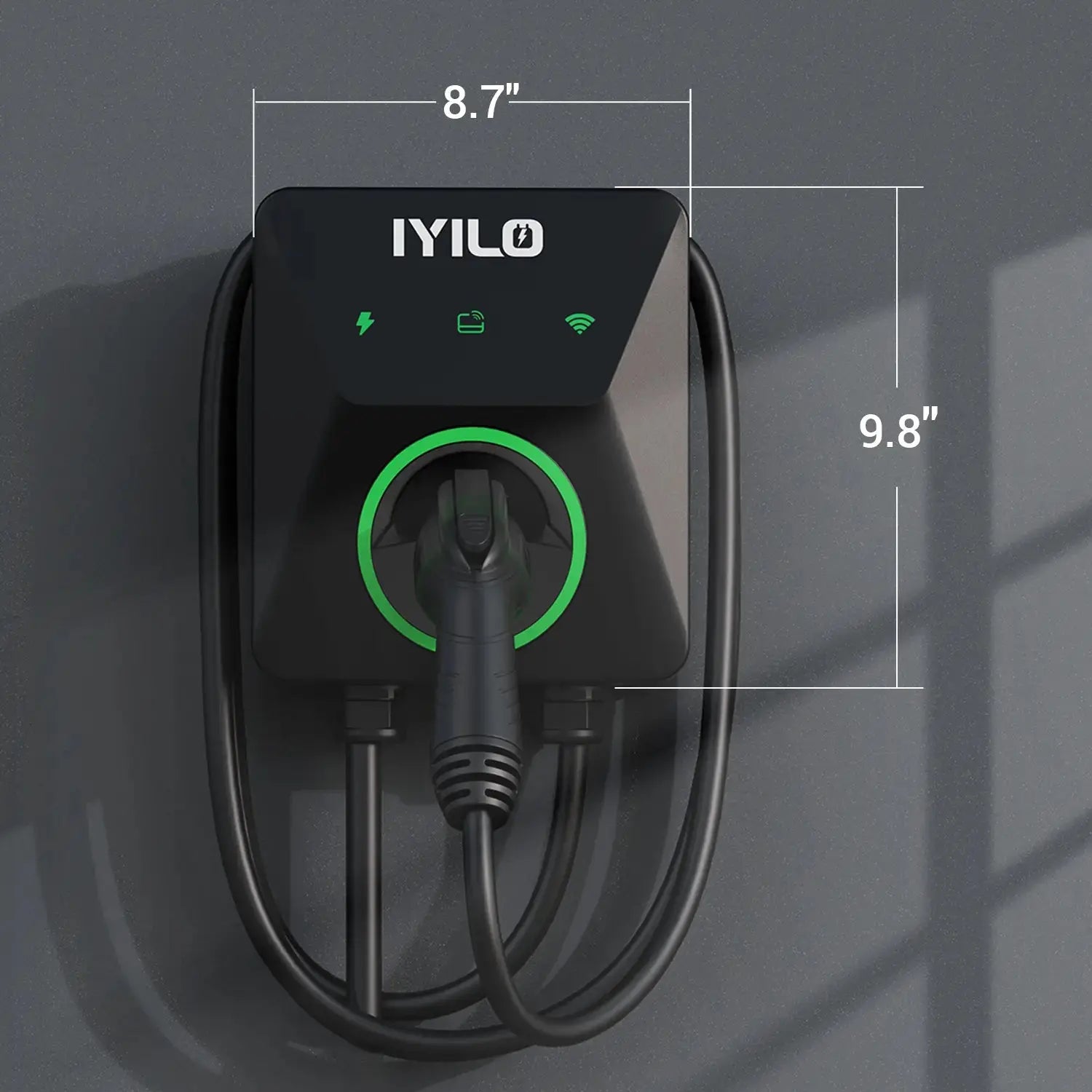

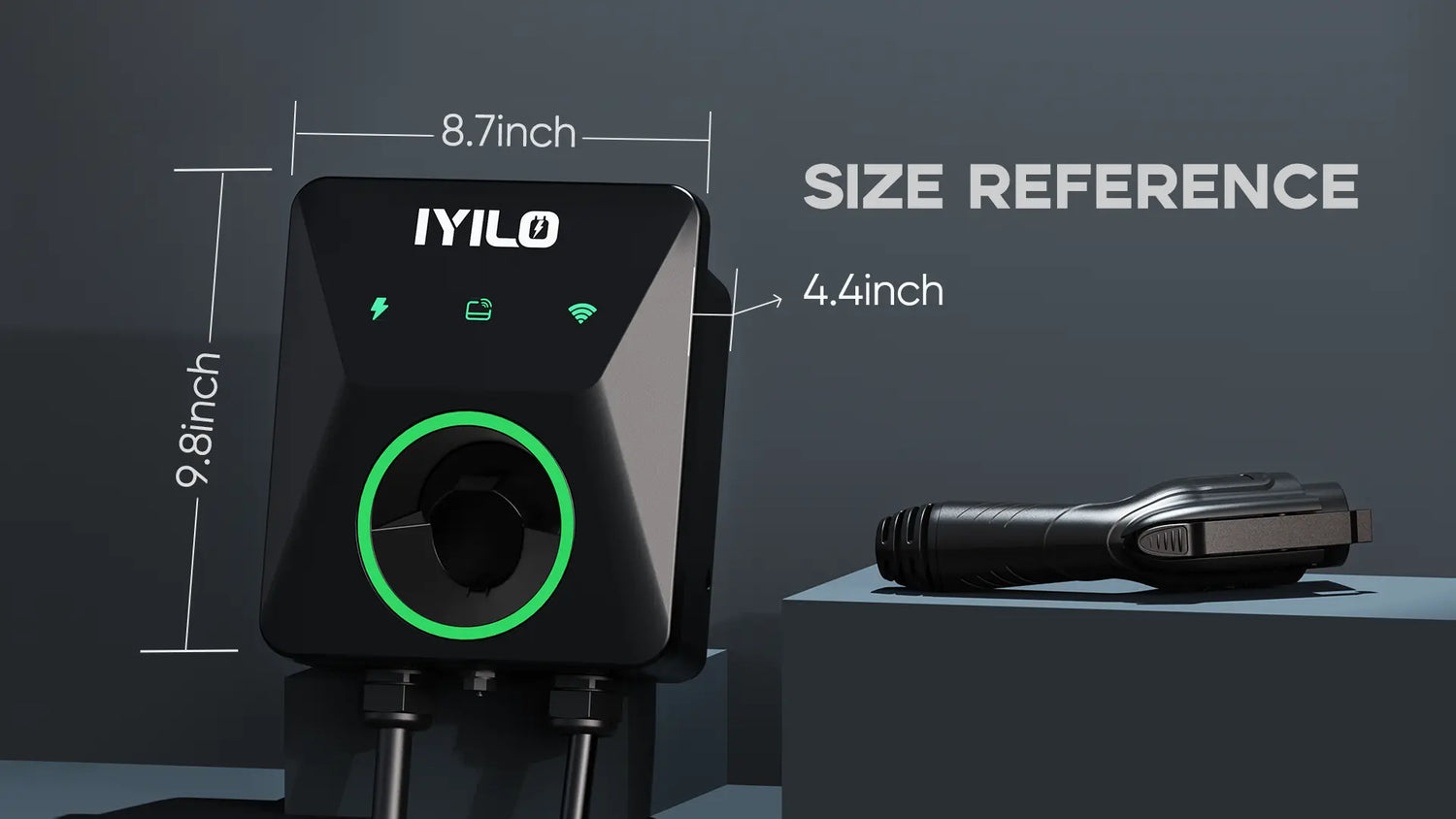

Dimensions (H×W×D) 250x220x109 mm
Shipping & Returns

Continental U.S.: Delivered within 3–5 business days via trusted carriers such as UPS, FedEx, or USPS.
Hawaii, Alaska, Puerto Rico, and U.S. Virgin Islands: Delivered in 3–15 business days, depending on the selected shipping method and carrier availability.
International Orders: Shipping time varies based on country and customs clearance; delivery estimates will be shown during checkout if international shipping is available.
In most cases, your product will arrive within 5–7 calendar days from the date of your order.

IYILO Level 2 EV Charger Plug In - 40A - IYILO

IYILO Level 2 EV Charger Plug In - 40A

$399.00 USD
$399.00 USD

Customer Service

24/7 support available

Warranty

3 year warranty included

Express Delivery

Fast shipping worldwide

Secure Payment

Safe and secure checkout

Customer Service

24/7 support available

Warranty

3 year warranty included

Express Delivery

Fast shipping worldwide

Secure Payment

Safe and secure checkout

Stay Informed, Stay Secure

A dynamic LED light strip with color-coded indicators guides you through each chargingstage.

APP user guide

Stay charged, wherever the road takes you.
The IYILO App is your all-in-one smart companion for electric vehicle charging. Find nearby charging stations in real time, check availability, start charging with a tap, and monitor your session anytime, anywhere. With seamless navigation, secure payments, and detailed charging history, IYILO makes your EV experience effortless and efficient.

Download PDF

FOR IOS &ANODOIED

IYILO APP

Safety and Control in Your Hands

Learn More

frequently asked questions

Compatibility & Usage
Safety & Adapters
Installation & Configuration
Product Features & Specifications
Compatibility & Usage
Safety & Adapters
Installation & Configuration
Product Features & Specifications
How much electricity power can I get per hour?

The IYILO Level 2 EV Charger requires a 240V household power supply and can deliver between 6 to 48 amps of current. At 40A, it can provide approximately 35–45 miles of range per hour. At 48A, it can provide approximately 40–50 miles of range per hour.

Can I charge my car while offline?

By default, the IYILO EV Charger is set to Plug & Charge, allowing you to start charging immediately without using the app or Bluetooth pairing. The default current is 40A for the IYILO-RA40 and 48A for the IYILO-RA48. At the same time, when the charger is offline, you can still use Plug & Charge even without an internet connection.

Does it works with my vehicle?

Our J1772 Level 2 EV Charger is designed to be compatible with almost all electric vehicles (EVs) available in North America (TESLA need an adapter)

How can I determine if my car is compatible?

To ensure your electric vehicle is compatible with our EV Charger, a quick Google search or a check in your vehicle's manual should reveal whether your EV uses a J1772 or NACS connector. For Tesla owners, our J1772 EV Charger model can be used with a Tesla adapter

Can I lock the EV Charger to prevent unauthorized use if installed outdoors?

If you do not want your EV charger to be used outdoors by others, you can disable both the plug-and-charge and scheduled charging functions, and switch to manual mode for charging.

Can I use an adapter with the IYILO Level 2 EV charger?

We do not recommend doing so. There are many types of adapters on the market, and while some may appear to be NEMA 14-50R, their internal wiring may not be compatible with EV chargers, which can result in the charger not functioning properly. In addition, low-quality adapters with unreliable build quality may cause poor contact at the plug, leading to overheating and potentially causing the plug to burn or melt.

Can the IYILO plug-in version be converted to a hardwired installation?

Yes, both the IYILO 48A Plug-in version and the IYILO 40A Plug-in version can be converted to a hardwired installation. You simply need to remove the NEMA 14-50 input cable and connect the hardwire input according to NEC code or your local electrical code. Please consult a licensed electrician for proper installation.

what is the maximum current and power that the charger can support in NEMA14-50 plug-in version?

In the NEMA 14-50 plug-in version, the IYILO charger supports a maximum current of 40A and a maximum power output of 9.6 kW.

What size circuit breaker should I install for the NEMA 14-50 Plug-in version?

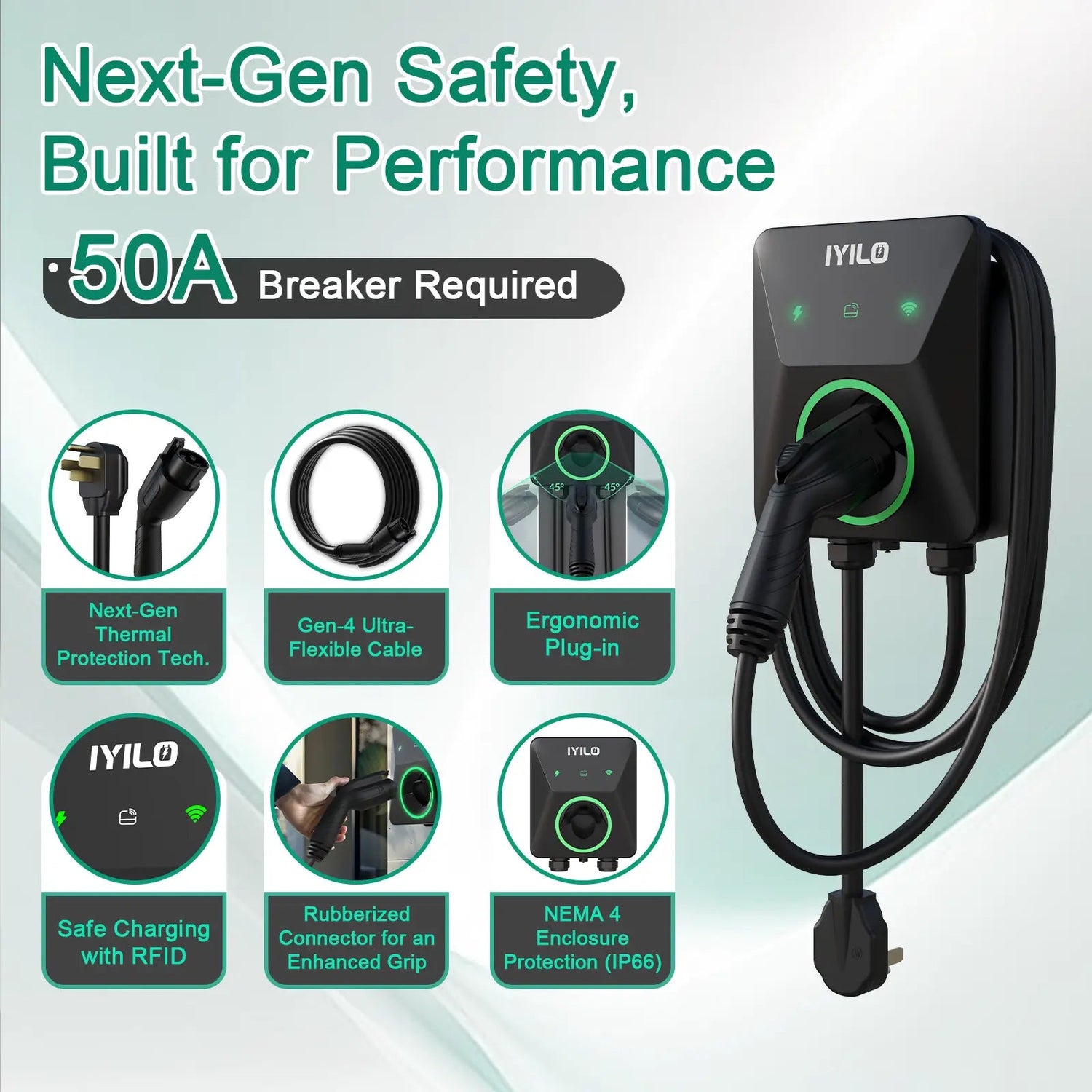

For the NEMA 14-50 plug-in version, the maximum current (Dip switch setting) is preset to 40A at the factory. According to NEC (National Electrical Code) guidelines, the circuit breaker should be rated at 125% of the continuous load. Therefore, a 50A breaker should be used.

What is the factory preset current for the IYILO Level 2 charger?

The preset current for the 48A/40A Plug-in version is 40A, while the preset current for the 48A Hardwired version is 48A.

What size circuit breaker should I install for the 48A Hardwired version?

According to the NEC code, a 48A charger requires a 60A circuit breaker.

How can the current be adjusted?

The default current is 40A (RA40) and 48A (RA48). You can adjust the current in 1A increments via the IYILO App. If you want to switch between a 48A hardwired installation and a 40A plug-in setup, you can do so by adjusting the internal rotary switch, which allows you to toggle the maximum current.

Do I need install a GFCI Breaker for my charger?

All versions of the IYILO EV Charger include a built-in GFCI Protection for personnel protection. According to NEC code, NEMA 14-50 outlets must have GFCI breaker. However, our charger performs a self-test that generates a small ground fault, which may cause external GFCI breakers to trip and interrupt charging. If local regulations require GFCI protection on the outlet, we recommend using a hardwired installation instead.

Do I need a qualified electrician to install my charger?

If you purchased the NEMA 14-50 plug-in version of the EV charger and already have a compatible outlet and circuit breaker installed, simply mount the charger on the wall and plug it into the outlet—no additional electrical work is needed.

If you are installing the hardwired version of the charger, we recommend hiring a certified electrician to complete the installation.

How can I convert the 48A plug-in charger to a hardwired version?

To upgrade the 48A plug-in charger to a hardwired version, you will need to replace the NEMA 14-50P input cable with a hardwired connection.You will need to prepare the following components yourself: L1, L2, and GND wiring (rated to support 48A current, we recommend using 6 AWG wires) and a 1″ liquid-tight conduit.For your convenience, we’ve included an AD34.5 conduit fitting inside the product package to assist you during the conversion process.

How can I adjust the current limit from 40A to 48A?

Please note: The 48A NEMA 14-50 plug version is factory preset to a 40A current limit.When converting it to the 48A hardwired version, please make sure to turn the rotary switch on the mainboard to any position between 3 and 9 to ensure the current limit is updated to 48A after the conversion.

How long are the input and output cables of the IYILO Level 2 EV Charger?

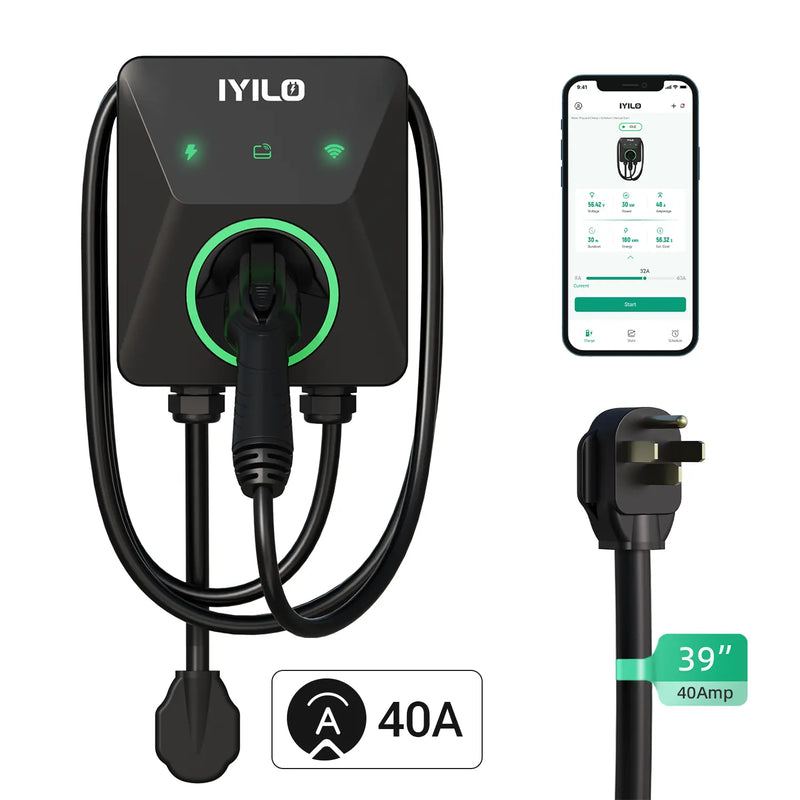

The input cable of the IYILO Level 2 EV Charger is 37 inches long, which is suitable for most installation scenarios. The output cable is a 25-foot premium-grade cable that can fulfill most charging needs in driveways and garages.

What is an NTC plug?

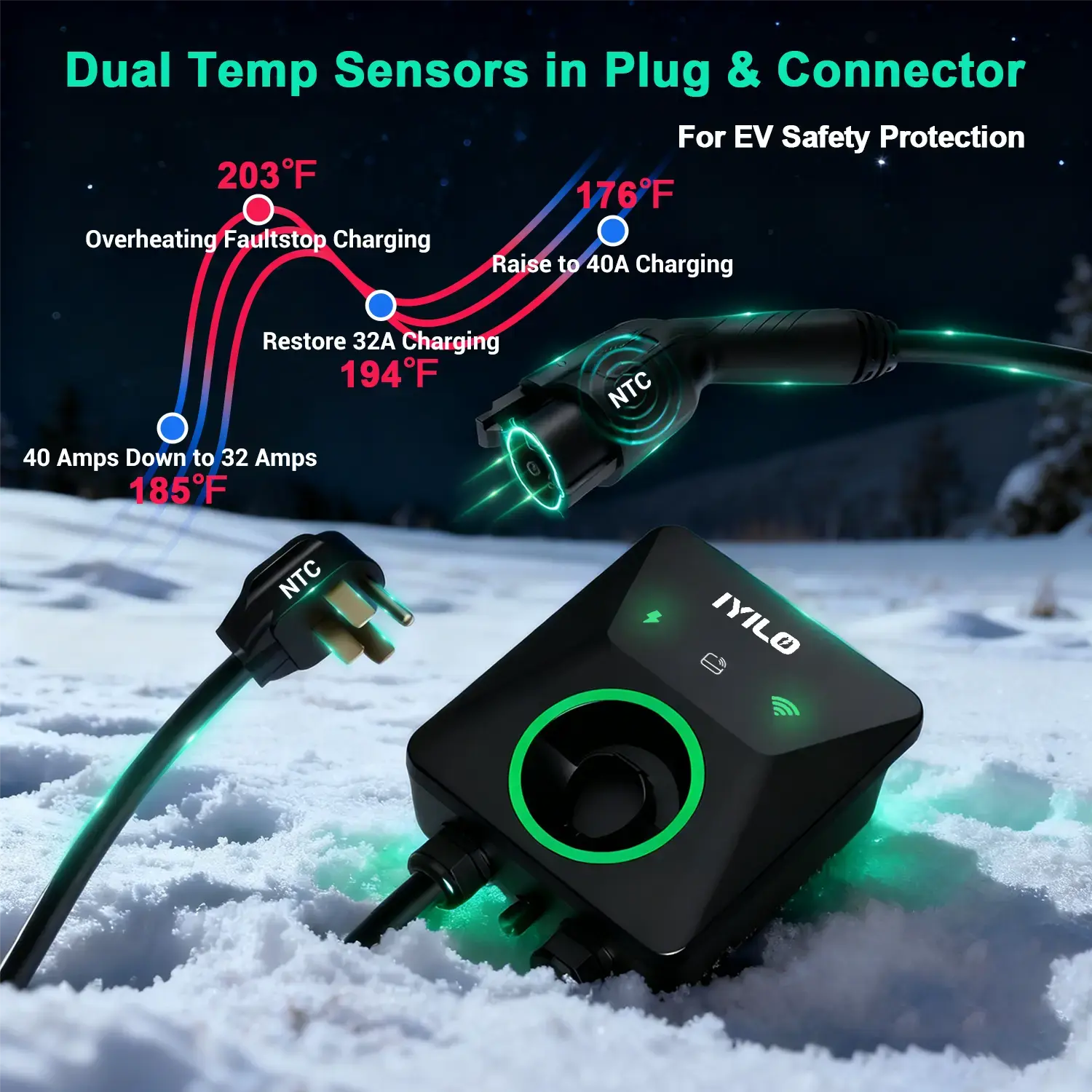

An NTC plug is equipped with a temperature sensor at the charger’s input plug to monitor its temperature. When the plug temperature exceeds the safe range, the system sends an alert through the app and automatically reduces the current. If the temperature reaches a dangerous level, the charger will automatically shut off the power, and charging will resume once the temperature returns to a normal level.

Can the IYILO Level 2 EV Charger be installed outdoors?

The IYILO EV charger has a NEMA Type 4 enclosure, which means it is dustproof, rainproof, and suitable for outdoor use. However, this device should not be installed in outdoor locations with high corrosion levels, such as coastal areas.

Why does my IYILO 48A Plug-in charger only show a maximum current of 40A?

The IYILO 48A Plug-in charger is factory preset for the NEMA 14-50 plug version. In compliance with NEC requirements, the maximum allowable current for the plug-in version is limited to 40A. If you wish to use the full 48A output, please switch to the hardwired version and use it with a 60A circuit breaker.
